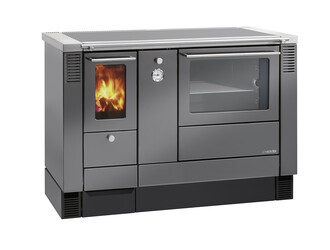

Varioline AC105

Integrated return temperature kit
The return temperature kit can be pre-installed on the rear of the cooker, meaning it can be simply connected to an accumulator on site.

Hydraulic design
The AC105 is specifically designed for modern closed (sealed systems) installations. The flow and return should be installed to a suitable accumulator. Mains cold water supply is required where the cooker is installed and a suitable drainage point for the Thermal Safety device.

System design services
Zero Ridge can offer full connection hydraulic designs for your installation.

Jetfire combustion
The patented Jetfire combustion system provides the highest possible efficiencies, resulting in maximum output and minimal emissions from your wood.

Large combustion chamber and oven
The Varioline AC105 features a large combustion chamber and new larger B3 oven (width 420 x height 290 x depth 410 mm).

Summer/Winter mode
The AC105 features a clever grate mechanism, allowing the cooker to be adjusted according to the season and the corresponding heat demands. In the summer months the boiler output can be decreased to just 6 kW.

Design features

• Modern aesthetic design
• High output
• Choice of colours
• Soft close wood storage drawer
• Large oven B3
• Adjustable grate for summer/winter
• Heat protection unit allows connection to kitchen units
